Abmessungen (B xH x T) | 148 mm x 331 mm x 39 mm |
Gewicht | 1.500 g |
Gehäuse | Kunststoff |
Auflösung | HD 1920 x 720 |
Blickwinkel | Horizontal: 170° |
Vertikal: 170° | |
Display | IPS Display |
farbtreu, blickwinkelstabil und entspiegelt | |
Kameraeingänge | 2 x 1080P - AHD (30 fps) |
2 x CVBS - PAL / NTSC - kein Mischbetrieb möglich | |
Helligkeit | 1000 cd / m², automatische Anpassung |
Kontrast | 1000 : 1 |
IP-Schutzklasse | IP 30 |
Betriebstemperatur | - 20° C bis + 70° C |
Lagertemperatur | - 30° C bis + 80° C |
Vibrationsfestigkeit | 6,3 G (ISO 16750-3) |
Betriebsspannung | 10 V - 32 V |
Leistungsaufnahme | Max. 20 W |
Stromaufnahme | Max. 2,5 A |
Features | Hilfslinien einblendbar, Zoomfunktion |
Artikelnummer | Artikelbezeichnung |
---|---|

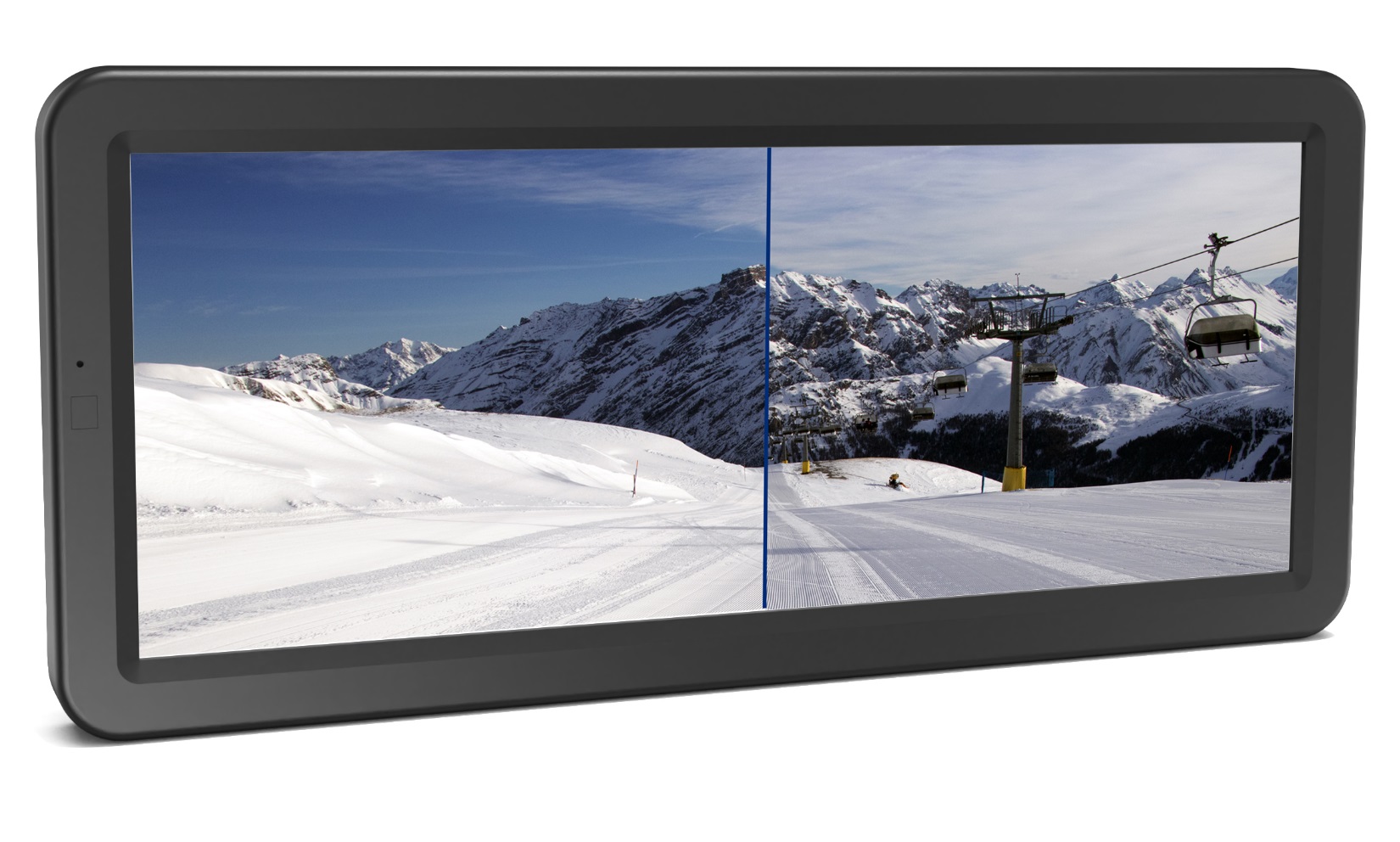

501012 | AHD Mirror Monitor 12,3" |
Artikelnummer | Artikelbezeichnung |
---|---|
501013 | Adapterplatte 501012 |
701044 | HD C Monitorhalter Diamant 14 cm |
