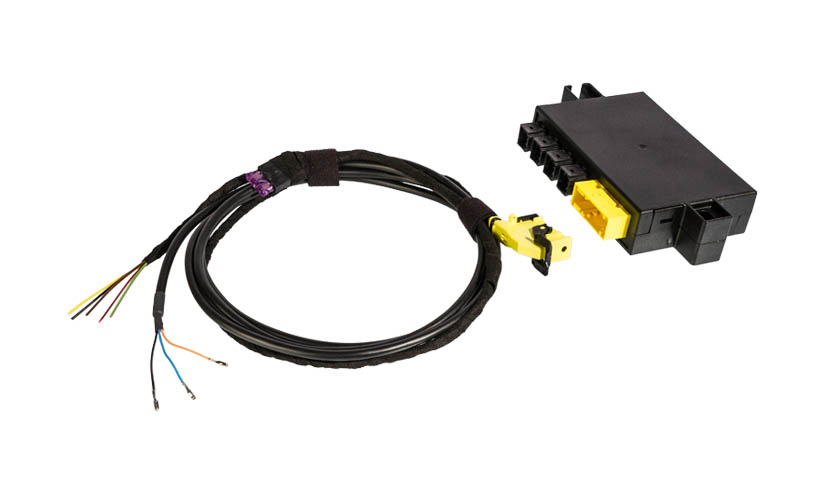

Rear View Camera Control Box for DAF
Adapter cable for connecting one or more reversing and/or blind spot cameras to the DAF camera interface. For vehicles up to model year 09.2016.
Dimensions (W x H x D mm) | 168mm x 100mm x 32mm |
Weight | Approx. 140 g |
Housing | PARA |
Working temperature | - 40 °C to +85 °C |
Voltage | 12 - 24 V DC (vehicle battery) |
Input power | Max. 24 W with monitor and 4 cameras |
Video system | PAL/NTSC |
Video Input | 4 x Video: Composite 1 Vpp, 74 Ohm |
Video Output | 1 x Video: Composite 1 Vpp, 75 Ohm |
Safety class | IP 54 |
| Art.-No. | Length | Product Description | Note | Plug connection |
|---|---|---|---|---|
| 710006 | 2 m | Control Box for DAF Camera Interface | For the connection of one or more reversing and/or blind spot cameras | AMP |
