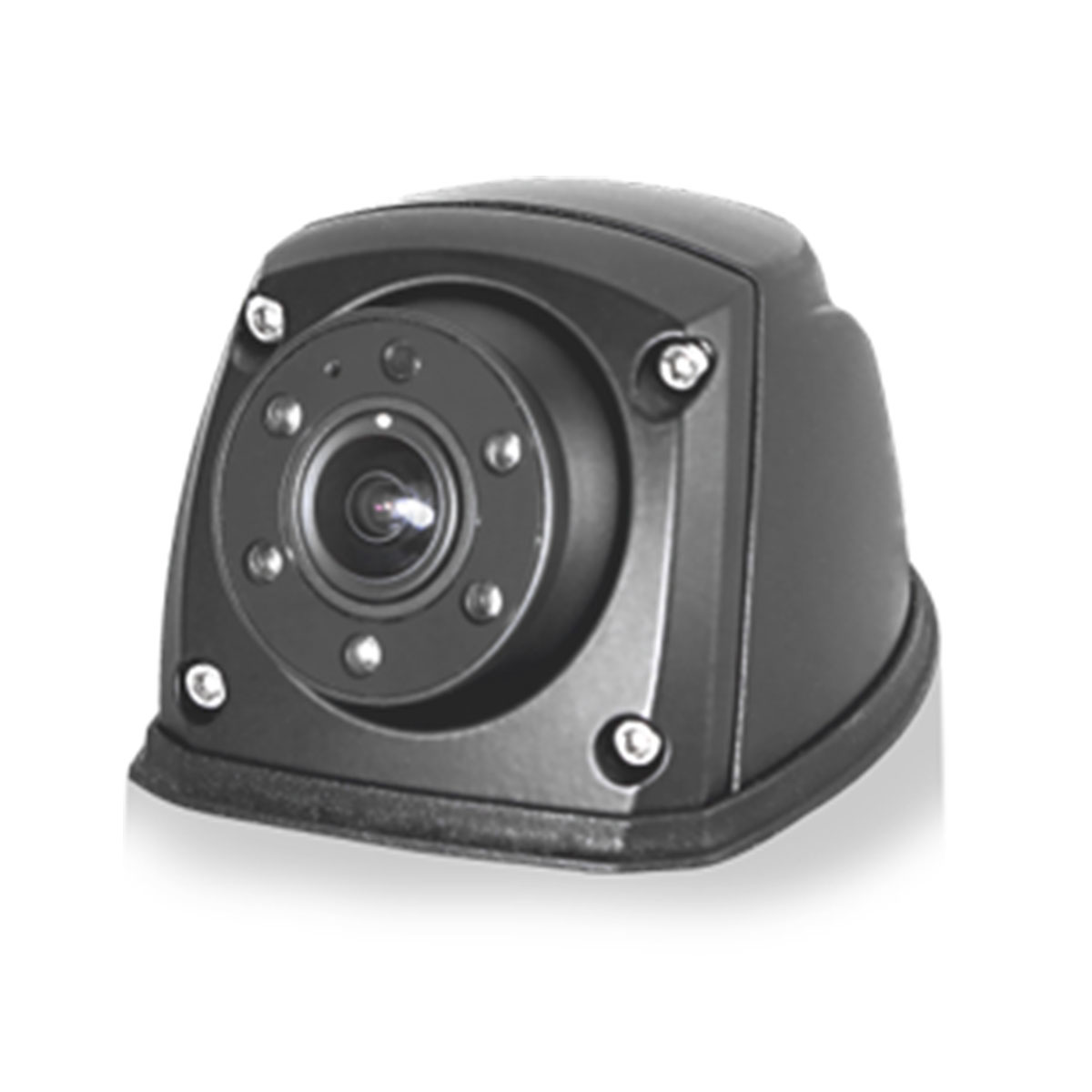

AHD Mirror Cam
| Measurements(W x H x D) | 63mm x 43mm x 78 |
| Weight | 200 g |
| Housing | Aluminum die casting |
| salt-resistant, additional protective varnish | |
| Operating Temperature | - 20° C to +70°C |
| Voltage | DC 12V |
| Input power | Max 2.64W |
| Video Format (B xH) | AHD: 1920 x 1080 pixels |
| Video Output | 1 Vss / 75 Ohms |
| Protection Class | IP 69 K |
| Sensor Resolution | 1920 x 1080 pixels |
| 1080 P | |
| Recording Sensor | 1/2.9" CMOS |
| Fidelity | Automatic white balance |
| Vibration Resistance | 10 G |
| Aperture Angle | 70° / 95° |
| Light Sensitivity | 0.1 Lux (Day) |
| 0 Lux (with IR) | |
| Item number | Product Description |
|---|---|
| 106070 | AHD Mirror Cam 70° Upper |
| 106095 | AHD Mirror Cam 95° Lower |
