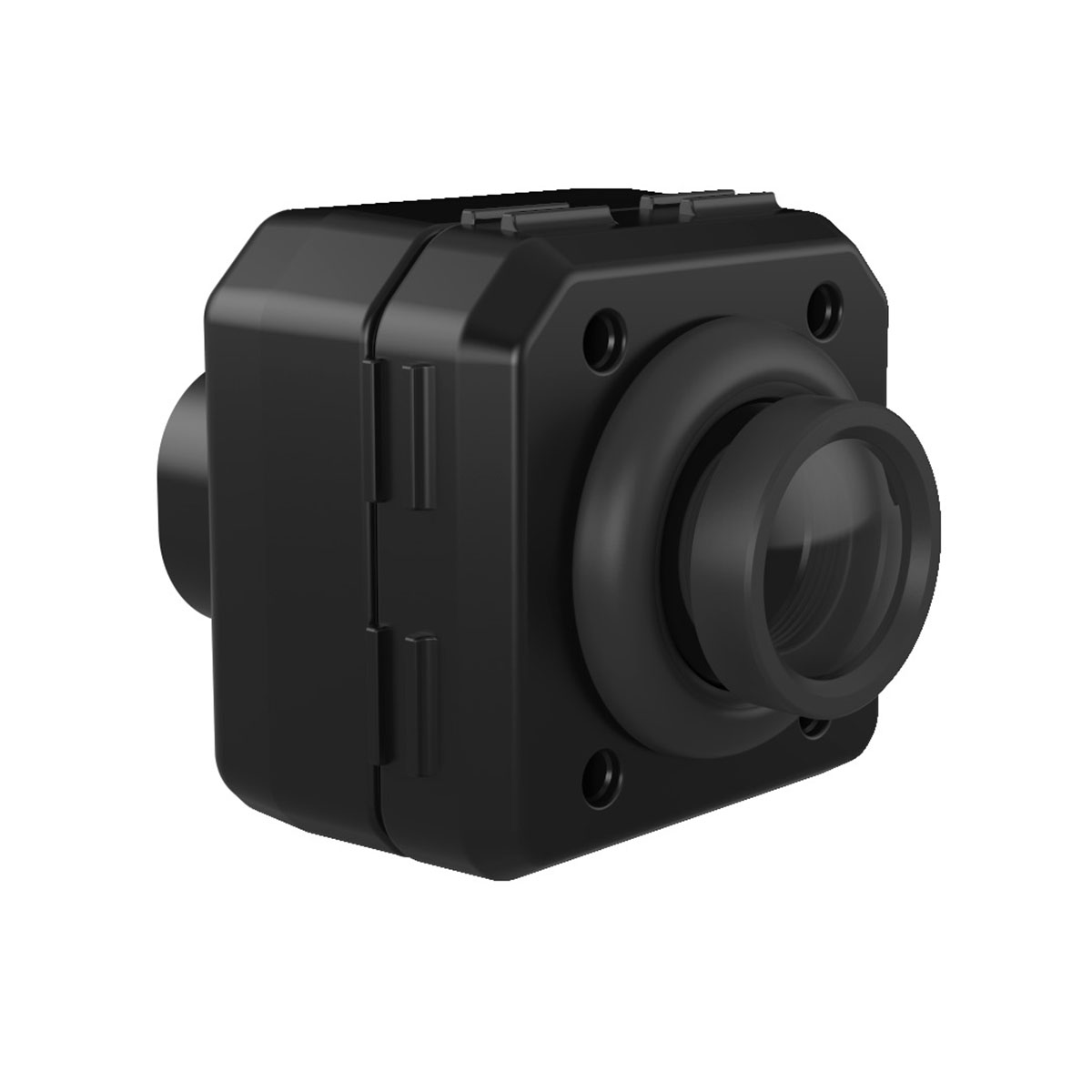

MCPA analog platform camera

  • Voltage

    9 - 36 V

  • Working temperature

   -40°C to +85°C

  • Image sensor

   VGA

  • Image reproduction

  NTSC:720 x 486 pixels (W x H) PAL: 720 x 576 pixels (W x H)

  • Cable

 ADR-tested, oil and petrol residual, 0.3m

  • Storage temperature

-40°C to +90°C

  • Input power

  <1 W (3.5W, heating on)

  • Min. Exposure

Contrast ratio >1:50 at 0.5lx

  • Opening angle

70°, 100° or 120°

  • Shock resistance

50 G

  • Safety class

IP 69 K

  • Sensor Resolution

640 x 480 pixels (W x H)

  • Connector

MEKRA, ø<18mm, ADR-tested, IP 69 K

  • Video Output

FBAS 1 Vss at 75Ω

  • Video format

NTSC or PAL



Item number Product designation Opening angle
105070 MCPA PAL direct 70°
105100 MCPA PAL direct 100°
105101 MCPA PAL direct vza. 100°
105120 MCPA PAL direct 120°
105072 MCPA NTSC direct 70°
105102 MCPA NTSC direct 100°
105104 MCPA NTSC direct 100°
105122 MCPA NTSC direct 120°
105075 MCPA Shutter 24/V PAL 70°
105105 MCPA Shutter 24/V PAL 100°
105125 MCPA Shutter 24/V PAL 120°
105076 MCPA Shutter 24/V NTSC 70°
105106 MCPA Shutter 24/V NTSC 100°
