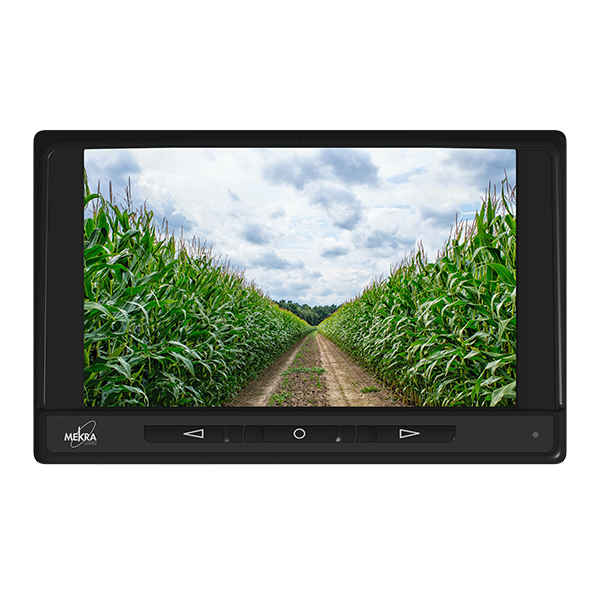

7" MEKRA LED Monitor Quad IP 65

The 7" LED monitor is perfect for integrating a rear view camera into commercial vehicles. An optimal addition for vehicles without the existing possibility for video display. The automatic detection of the input signals enables mixed operation of PAL and NTSC cameras. The integrated trailer detection automatically switches between the rear view camera on the towing vehicle and the one on the trailer. Preset menus allow easy customization to the needs of the driver.

Made in Germany!

Dimensions (W x H x D)

188mm x 120mm x 45mm


620 g (without bracket)

Working temperature

-30°C to +85°C


12 / 24 V

Input power

< 10 W

< 26 W with four connected cameras

Camera Inputs

4 incl. Split screen display is possible


360° All-round view-Image arrangement

PiP function

Picture-by-picture representation


800 x 480 pixels

Video format tab

PAL: 720 x 576 pixels (W x H)

NTSC: 720 x 480 pixels (W x H)

Automatic detection

Brightness (CD/m2)


Contrast ratio

1 : 600

Safety class

IP 65

Background illumination


Brightness control

Automatic control via a day/night sensor

Key features

Additional attached sun visor

Art.-No. Product Description
507405 7" MEKRA LED Monitor (Kit)
507407 7" MEKRA LED Monitor (without cable)
