Video Radio system
|
Dimensions (W x H x D mm) |
105 x 106 x 25 mm |
|
Weight |
315 g |
|
Housing |
Aluminum Die Casting |
|
Working temperature |
-20 °C to +70 °C |
|
Storage temperature |
-30 °C to +80 °C |
|
Transmitter operating voltage |
10 - 32 V DC |
|
Transmitter output voltage |
12 V DC |
|
Operating voltage of the receiver |
10 - 32 V DC (via connection on the monitor) |
|
Video format tab |
PAL/NTSC |
|
Reception strength |
-89 dBm |
|
Safety class |
IP69K |
|
Connection |
MEKRA connection Ø< 18 mm (IP 69K) |
| Item number | Product Description | Description |
|---|---|---|
| 730021 | MWD T- 2 transmitter m. Connecting cable | Adhesive antenna flat 3 dB, instruction manual |

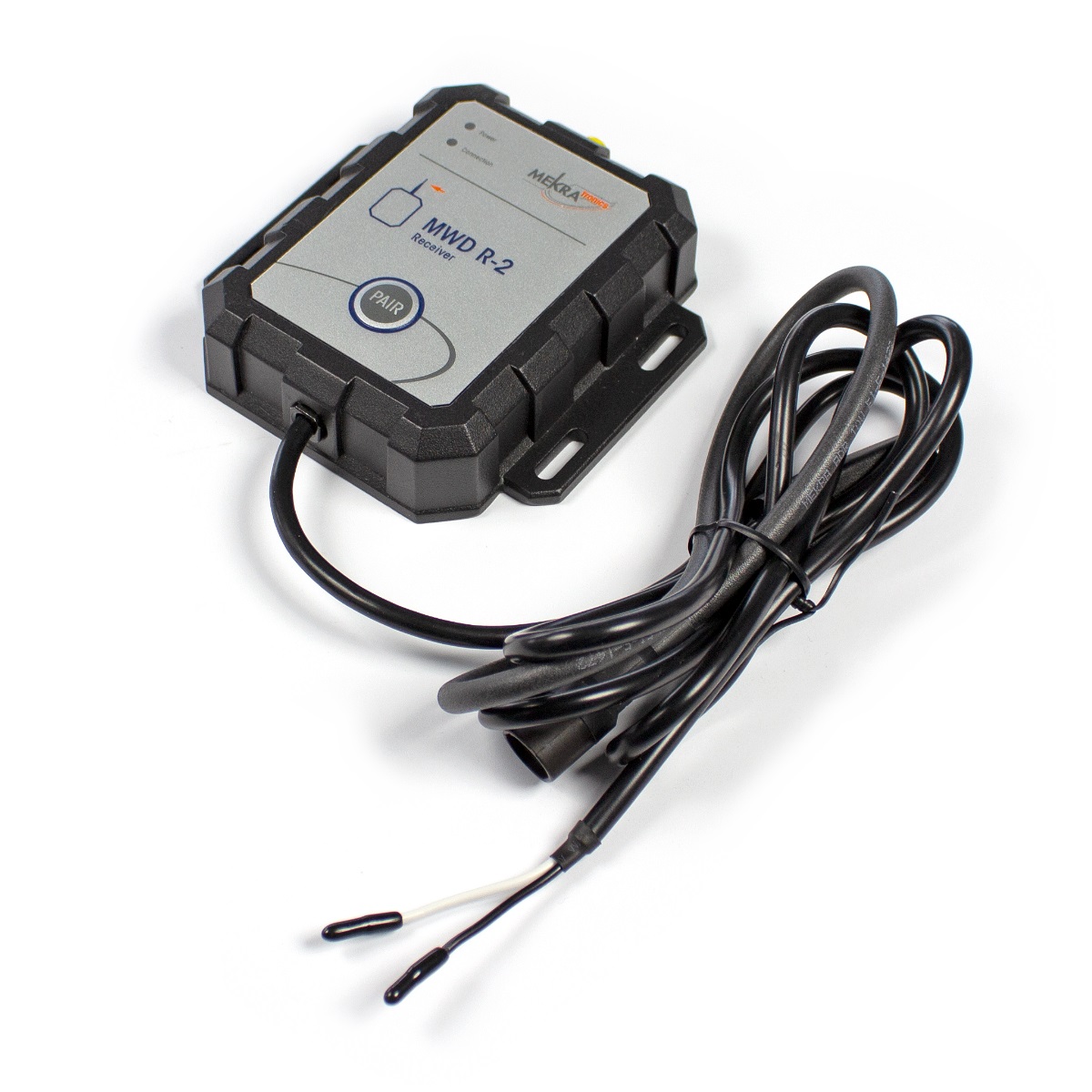

| 730031 | MWD - R- 2 receiver M. Connecting cable | Adhesive antenna flat 3 dB, instruction manual |
| 730060 | MWD Forkcam 45° | |
| 730061 | MWD Flexcam 120° | wire-less video transmittal |
| 731101 | Charger 12V-24V | |
| 731102 | Charger 230V | |
| 731201 | HD Accu Batterie Pack IP 69K 12V - 7800mAh |
