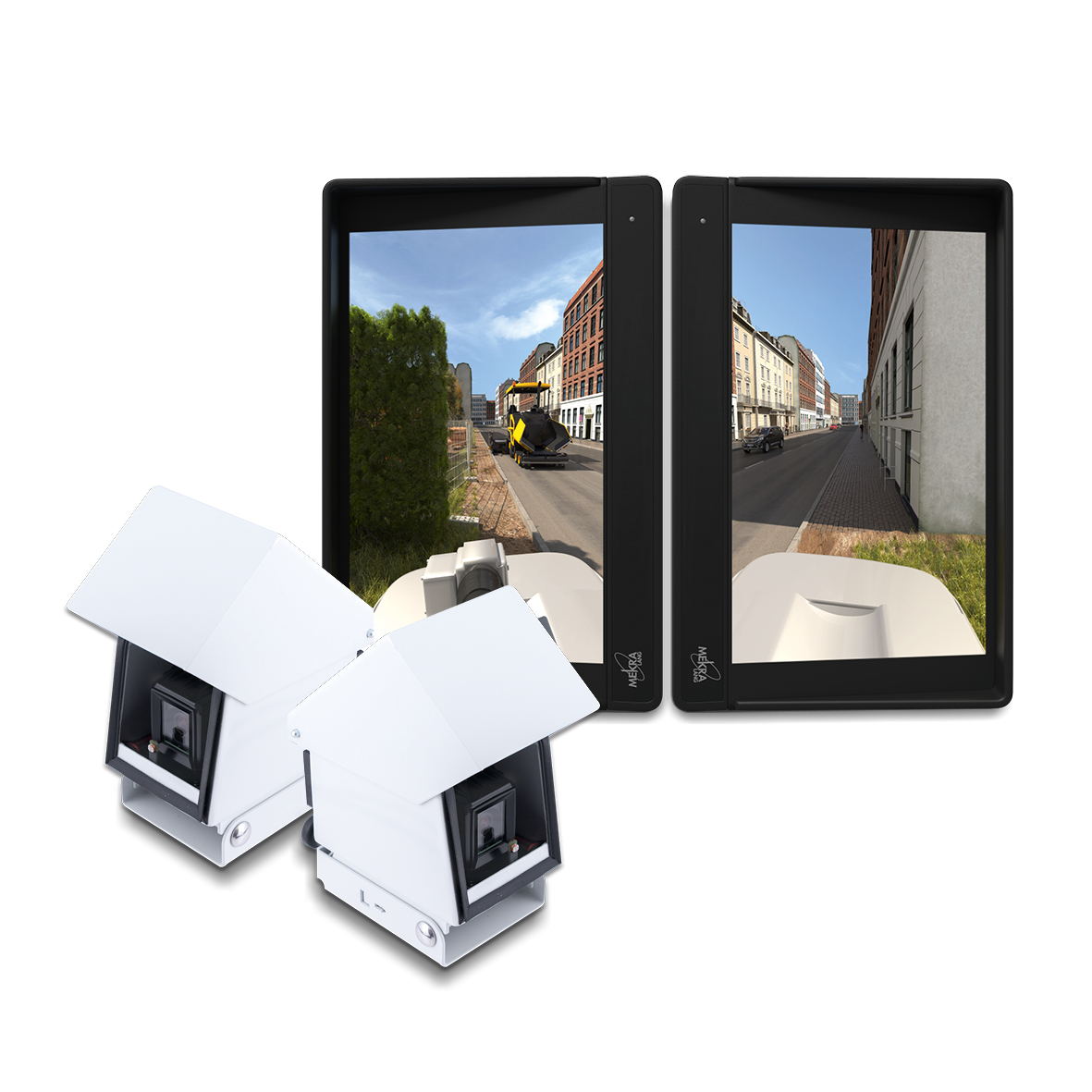

Shutterbox with camera 70°
Cameras pre-assembled in shutter boxes
| • Safety class | IP69 K |
| * Sensor resolution | NTSC: 720 x 486 pixels (W x H) |
| • Temperature range | -40 °C to +85 °C |
| * Shock resistance | 50 G |
| • Opening angle | 70° |
| • Voltage | 10 - 36 V (Cameras only) |
| • Video format tab | NTSC |
| * Dimensions(WxHxD) | 65 mm x 59 mm x 50 mm (without holder) |
| • Housing | Die-cast aluminium, salt-resistant, additional protective varnish |
| • Input power | < 1 W (< 3.5 W, heating on) |
| • Min. Illuminance | < 0.54 Lux |
| • Weight | 180 g (without holder) |
| * Cables and connectors | ADR tested, oil and petrol resistant, 0.5m MEKRA connector, diameter < 18 mm, ADR tested, (IP69 K) |
| • Other stuff | Heated and extra tempered front glass |
| • Certificate | CE,RoHS, E1, FCC |
Shutterboxes
| • Voltage | 12 V | |
| * Dimensions (W x H x D) | closed: 145mm x 103mm x 125mm open: 160mm x 103mm x 190mm |
|
| • Weight | approx. 950 g (without console) | |
| • Temperature range | -40 °C to +85 °C | |
| * Cables and connectors | 2x 0.4m, each IP69 K | |
| • Material | FE, powder-coated | |
| • Heater | Heating on at < 5°C Heating off at > 9°C |
|
| • Security | ||
|
Mechanically, left and right for each housing | |
| -Function: | Load-dependent shutdown when opening/closing the shutter boxes | |
| -System readiness: | Brightness-controlled flashing LED in the field of view of the camera |
| Art.-No. | Product Description |
|---|---|
| 401070 | Shutterbox with camera 70°, left |
| 402070 | Shutterbox with camera 70°, right |
