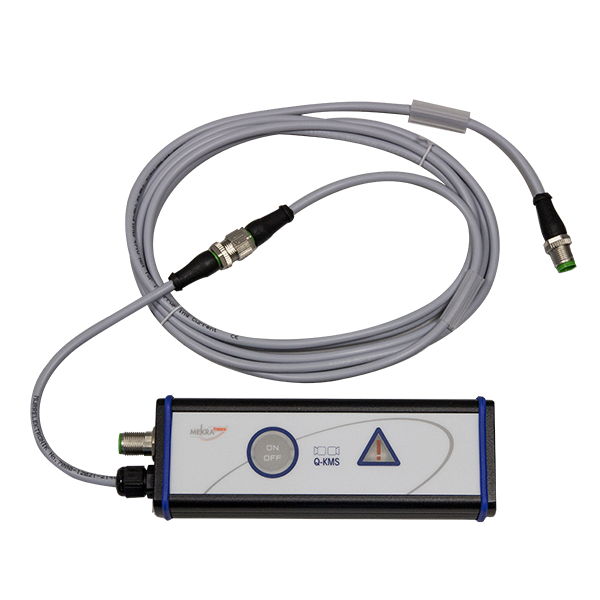

Control unit for shutter boxes
Control box for shutter boxes
| • Voltage | 12V |
| • Safety class | IP65 |
| • Physical dimensions | 163mm x 60mm x 35mm |
| • Temperature range | -40°C to +85°C |
| • Connection cable | 2.5 m |
| • Input power | |
| - Standby | ≤ 0.5W |
| - Operation | ≤ 1.6W |
| - Heater | ≤ 25.0W |
| • Hedge | Internal, 3 A |
| • Haptics | Button increased, haptic feedback, touch force > 8N |
| • Other stuff | Load monitoring of the shutter boxes |
| Art.-No. | Product Description |
|---|---|
| 420005 | Control unit for shutter boxes, left & right, 11 m |
